Specifications
General Information
Base
G9
Bulb shape
T18

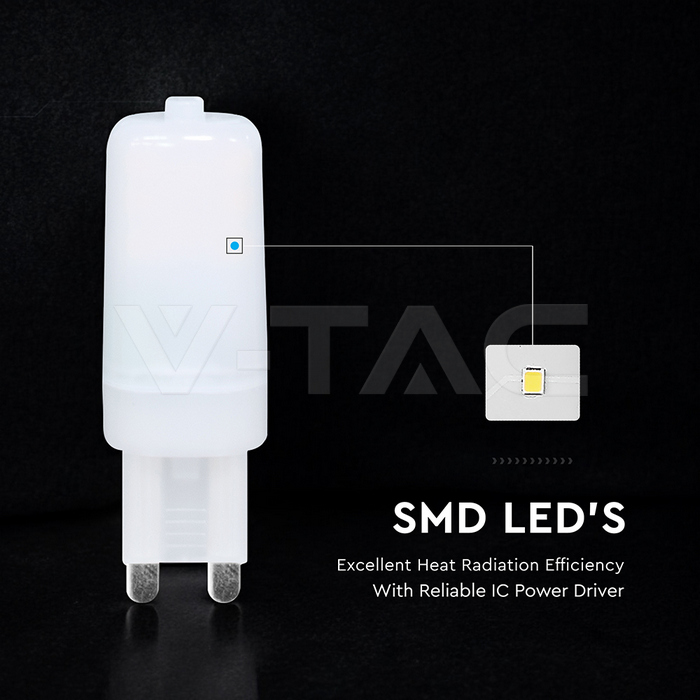

LED Chip
SMD
Lifespan
20,000 Hours
Electrical Data
Wattage
2,2W
EQ. Wattage
20W
Voltage
AC:220-240V
Frequency
50Hz
Technical Data

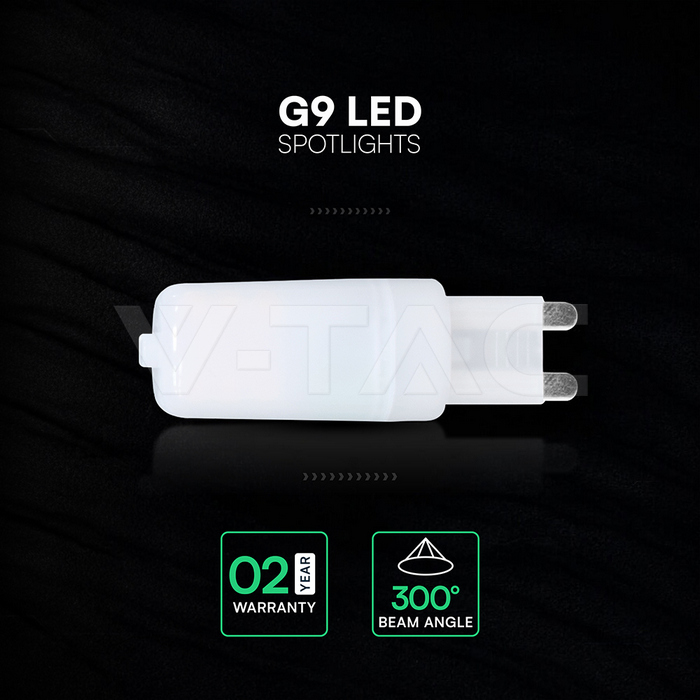

Beam angle
300°
Light color
Natural White
Color Temperature
4000K
Luminous flux (lm)
200 lm
Body Details
Body color
White
Capabilities
IP Rating
IP20
Starting Time 100% ON
0.001 sec (instant on)
Color stability
<6
Working conditions
-20°C to +40°C
Lumen maintenance factor at the end of the nominal life
70%

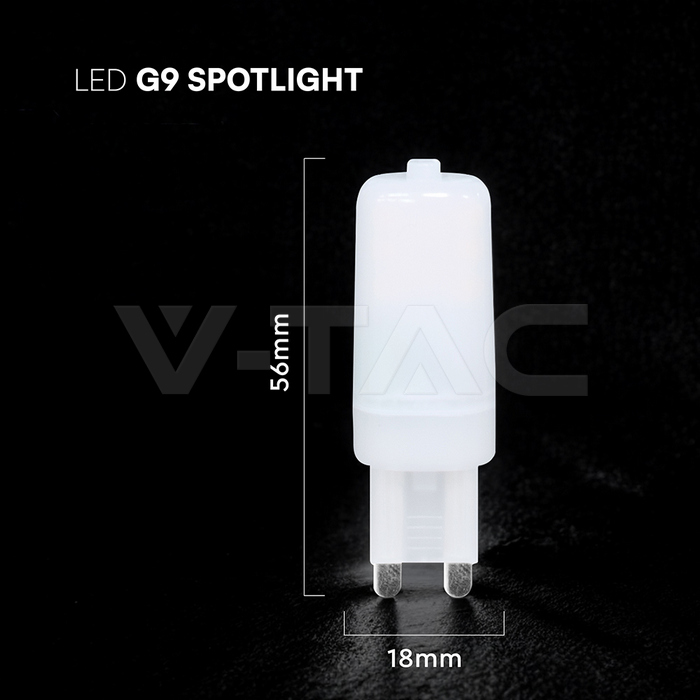

Dimensions
Size
18x56mm
Product Data
Order code
24025
Product code
VT-11033
Items per pack
1
Item Weight
0.02
Item Volume
0.000183
Items per box
400
EAN Code
3800170241565
Certificates & Standards
Certification
CE, EMC, ROHS
Energy efficiency class
F
Additional
Release Date
05.11.25
Brand
V-TAC
Warranty
2 Years
