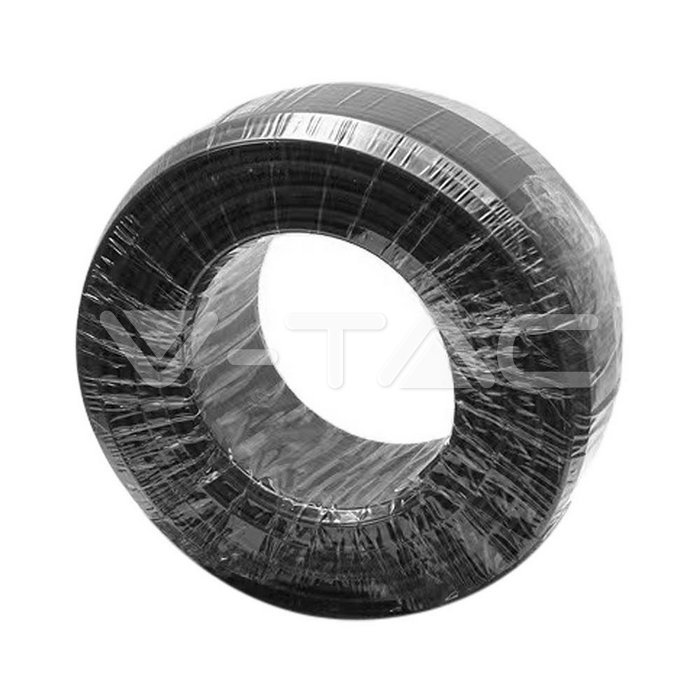

SKU-11414 PV Cable 4SQ Black For Solar Panel 100meters

3.50

არტიკული: 11414 კატეგორია:

აღწერა

Downloads
Specifications
General Information
Product Data
Order code

11414
Item Weight

6,2
Item Volume

0,008019
Items per box

4
EAN Code

3800157690935
Items per pack

100m.
Additional
Release Date

12.10.2022
Brand

V-TAC
Additional information

  • Conductor: Stranded tinned copper
  • Size: 4mm²
  • Stranding: 56/0.285±0.01mm
  • Diameter: 2.4mm
  • Primary Insulation: XLPE
  • Minimum Average Thickness: 0.7mm
  • Color: Black
  • Secondary Insulation: XLPE
  • Outer Diameter: 5.5±0.15mm

Electrical Characteristics

  • EN 50618/IEC 62930: AC: 1000V; DC: Max.1500V
  • Ambient Temperature: -40°C up to 90°C
  • At 20℃ Insulation Resistance: ≥ 709 MΩ.km
  • Current carrying capacity AT 30℃: 57A
  • Spark test: 10000 VAC
  • Voltage Withstand: 6500 VAC
  • Conductor Resistance AT 20℃: ≤5.09 Ω/km
