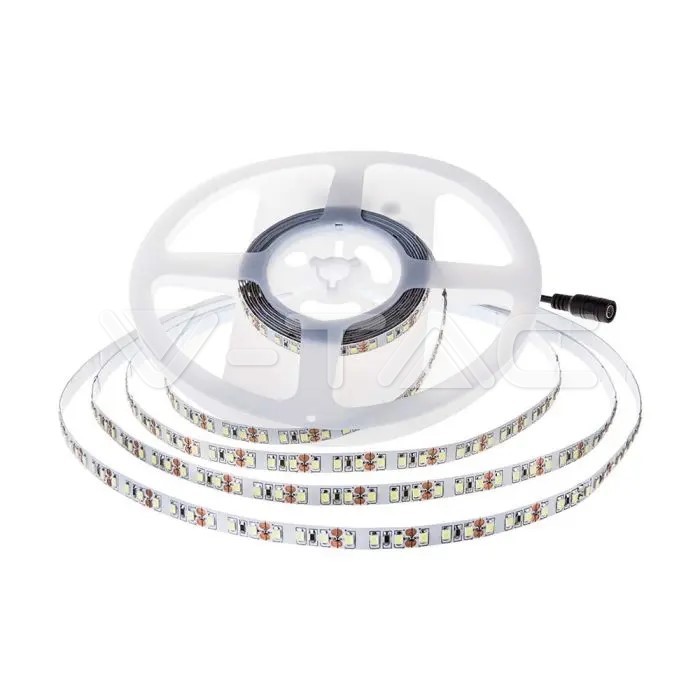

SKU-212597 LED Strip SMD2835 168 LEDs 24V IP20 4000K 140 lm/W

15.00

არტიკული: 212597 კატეგორია: ჭდე:

Product benefits

  • LED strip is a low voltage flexible ribbon available in 12/24V
  • Flexible & easy installation
  • Exceptionally low power consumption
  • Multiple visual effects in unending colours and shades
  • Available in different color range from Warm White to RGB
  • IP20 and IP65 Rating options
  • 1 or 1.5 meter rigid bar options available

Applications

  • Ideal for illuminating Borders, Edges, Cabinets, Bars and any area with limited space for installation

აღწერა

Specifications
General Information
LED Chip

SMD2835
Lifespan

20,000 hrs
Electrical Data
Current

0.5A/m.
Wattage/m

12W
Voltage

DC:24V
Technical Data
Beam angle°

120°
Luminous efficiency (lm/W)

140 lm/W
Light color

Natural White
Luminous flux/m

1680 lm
Color Temperature

4000K
LED Quantity

168 LED/m.
Lumens per LED

26-28 lm
Body Details
Material

PCB
Capabilities
IP Rating

IP20
Cut Points

Copper pads spaced every 3 LEDs. Cut only on the given cut line between the copper dots.
Starting Time 100% ON

0.001 sec (instant on)
Color stability

<6
On/Off cycles

15000
Working conditions

Not suitable for use in extreme conditions. Normal working conditions is -20° +40°
Dimensions
Width

10 mm
Product Data
Order code

212597
Product code

VT-2835-168
Items per pack

1
Item Weight

0,04
Item Volume

0,000185
Items per box

400
EAN Code

3800157676151
Certificates & Standards
Energy efficiency class

D
Certification

CE, EMC, ROHS
Additional
Release Date

10.02.2022
Brand

V-TAC
Warranty

2 years[download id=”8579″][download id=”8581″][download id=”8583″]
