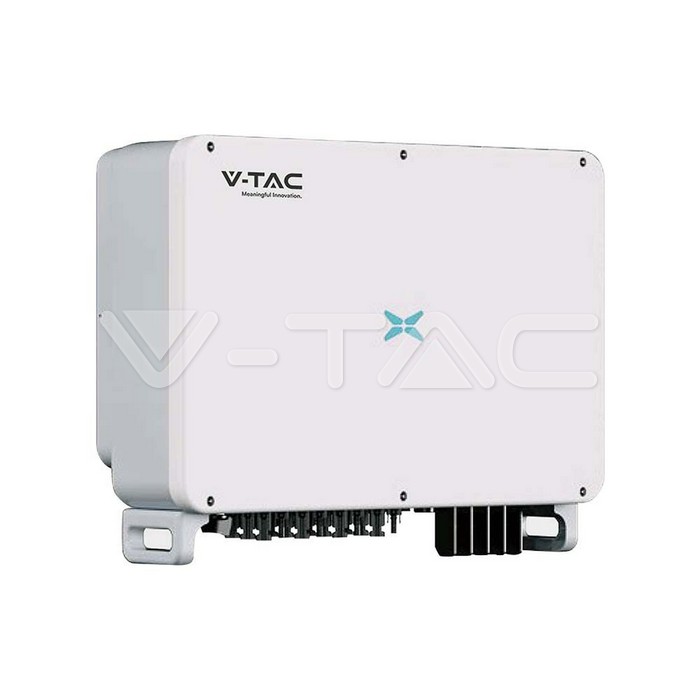

აღწერა
Specifications
General Information
Electrical Data
Current
- Max. Current per MPPT: 39A / 26А / 39А / 26А;
- Max. Short Circuit Current per MPPT: 48A / 32А / 48А / 32А
- Max. Output Current (AC): 79.7A
Wattage
- Max. Input Power: 80kW;
- Rated Output Power: 50kW;
- Max. Output Power: 55kVA;
Voltage
- Max. Input Voltage: 1100V;
- Start Voltage: 250V;
- Rated Input Voltage: 600V;
- Full-load MPP Voltage Range: 520V ~ 850V;
- MPPT Voltage Range: 200V ~ 1000V;
- Rated Grid Voltage: 230Vac /400Vac;
Frequency
Rated Grid Frequency 50Hz / 60Hz
Power Factor
>0.99 (0.8 lagging~0.8 leading)
Capabilities
IP Rating
IP66
Working conditions
-30°C to +60°C
Dimensions
Size
650 x 450 x 260 mm
Product Data
Order code
11631
Product code
VT-61060
Item Weight
50 kg
Additional
Release Date
02.05.2023
Brand
V-TAC
Warranty
10 years
