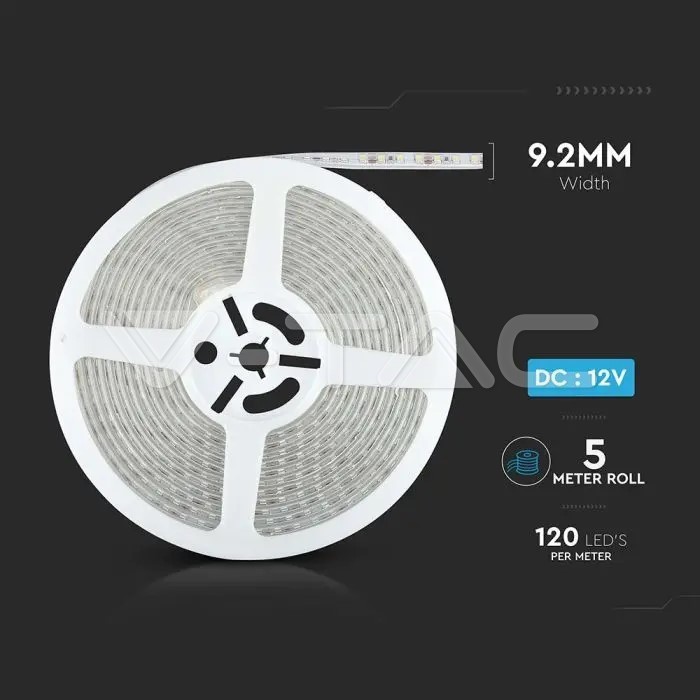

SKU-212044 LED Strip SMD3528 120 LEDs 4000K IP65

9.00 GEL

SKU: 212044 Category: Tag:

Product benefits

  • LED strip is a low voltage flexible ribbon available in 12/24V
  • Flexible & easy installation
  • Exceptionally low power consumption
  • Multiple visual effects in unending colours and shades
  • Available in different color range from Warm White to RGB
  • IP20 and IP65 Rating options
  • 1 or 1.5 meter rigid bar options available

Applications

  • Ideal for illuminating Borders, Edges, Cabinets, Bars and any area with limited space for installation

Description

Specifications
General Information
LED Chip

SMD3528
Lifespan

20,000 hrs
Electrical Data
Current

0.66A/m.
Wattage/m

8W
Voltage

DC:12V
Technical Data
Beam angle°

120°
Light color

Natural White
Luminous flux/m

800 lm
Color Temperature

4000K
LED Quantity

120 LED/m.
Lumens per LED

18-20 lm
Body Details
Material

PCB
Capabilities
IP Rating

IP65
Cut Points

Copper pads spaced every 3 LEDs. Cut only on the given cut line between the copper dots.
Starting Time 100% ON

0.001 sec (instant on)
Color stability

<6
On/Off cycles

15000
Working conditions

Not suitable for use in extreme conditions. Normal working conditions is -20° +40°
Dimensions
Width

9.2 mm
Product Data
Order code

212044
Product code

VT-3528-120
Items per pack

1
Item Weight

0,06
Item Volume

0,000185
Items per box

400
EAN Code

3800157676250
Certificates & Standards
Energy efficiency class

F
Certification

CE, EMC, ROHS
Additional
Release Date

10.02.2022
Brand

V-TAC
Warranty

2 years
