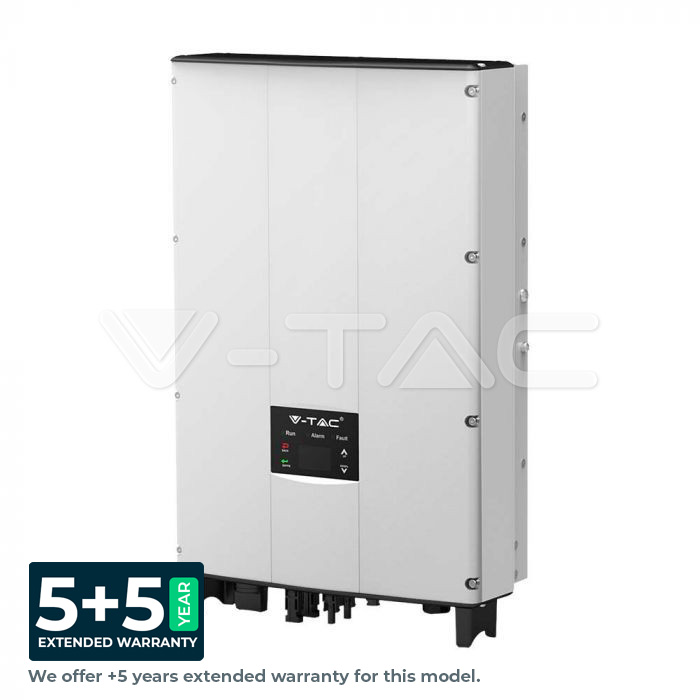

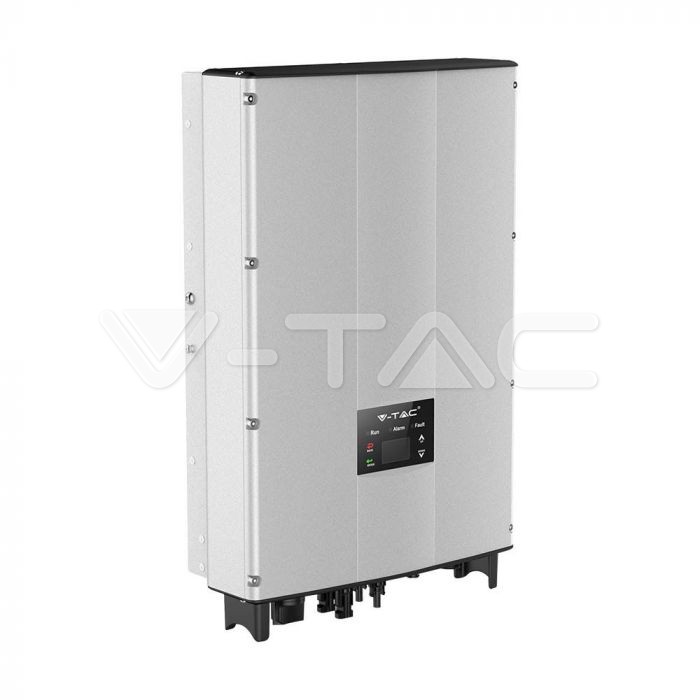

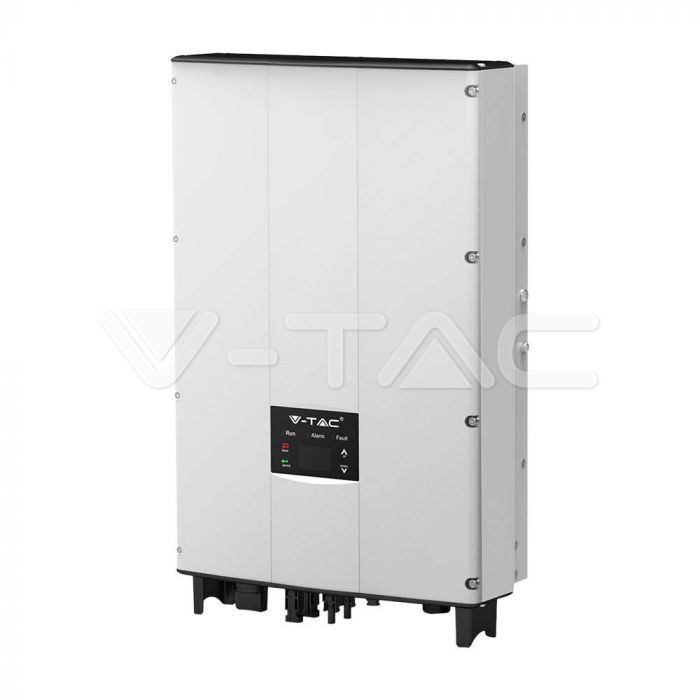

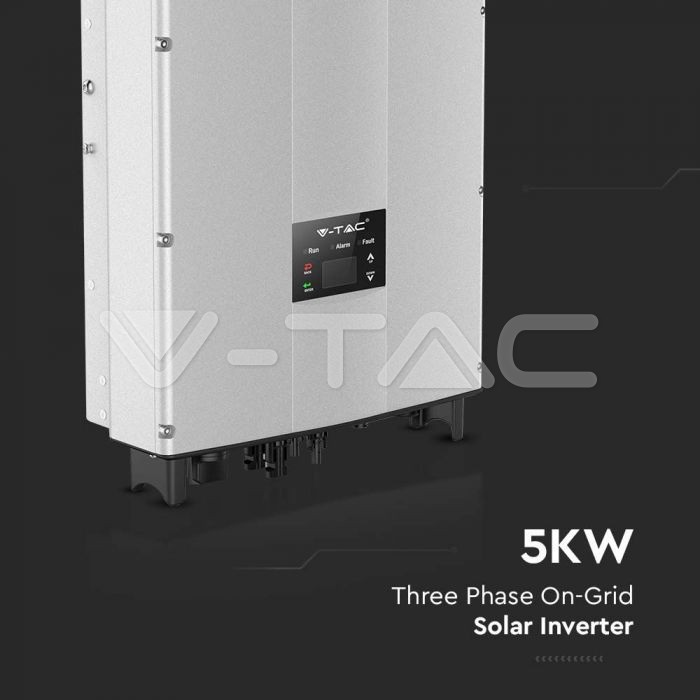

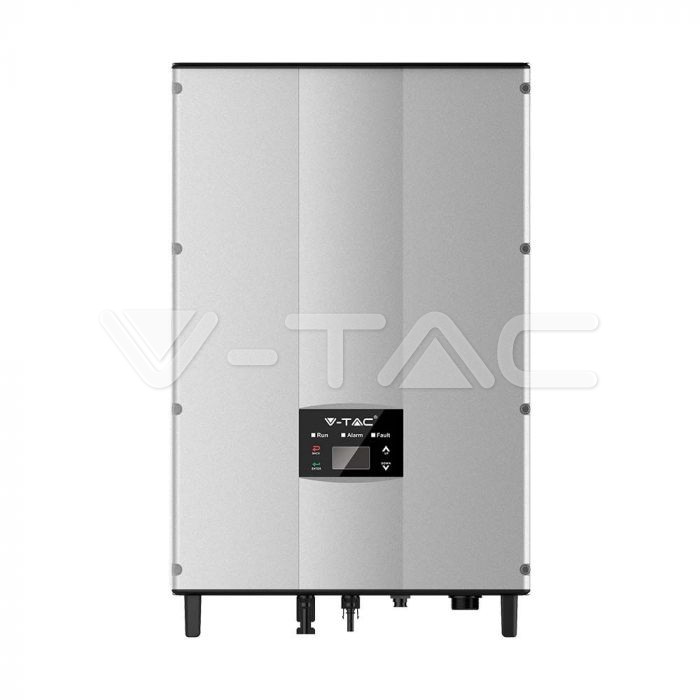

SKU-11371 5kW On-Grid Solar Inverter LCD Display DC Switch Three Phase IP65

SKU: 11371 Category:

Description

Specifications
General Information
Electrical Data
Current

  • Max. DC Current per MPPT x Quantity of MPPT: 10×2
  • Max. Output Current: 8A
Wattage

  • Max. Input Power: 5700W;
  • Rated AC Power: 5000W;
Voltage

  • Max. Input (DC): 900V;
  • Start Voltage/Min. Operating (DC): 220/180V;
  • MPPT Range (DC): 200-800/580V;
  • Nominal output voltage (AC): 230/400V;220/380V, 3L+N+PE/3L+PE
Frequency

50Hz / 60Hz
Power Factor

≥0.99 (Rated Power)
Capabilities

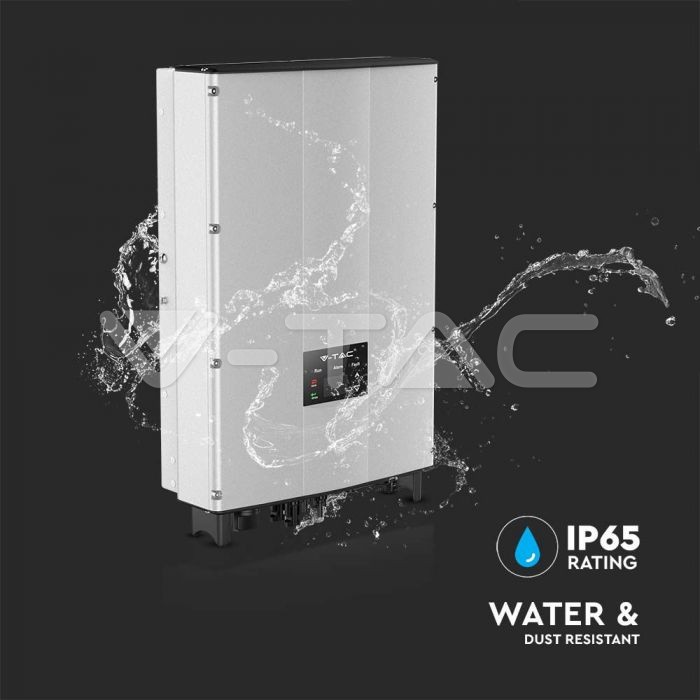

IP Rating

IP65
Working conditions

-25°C to +60°C
Dimensions

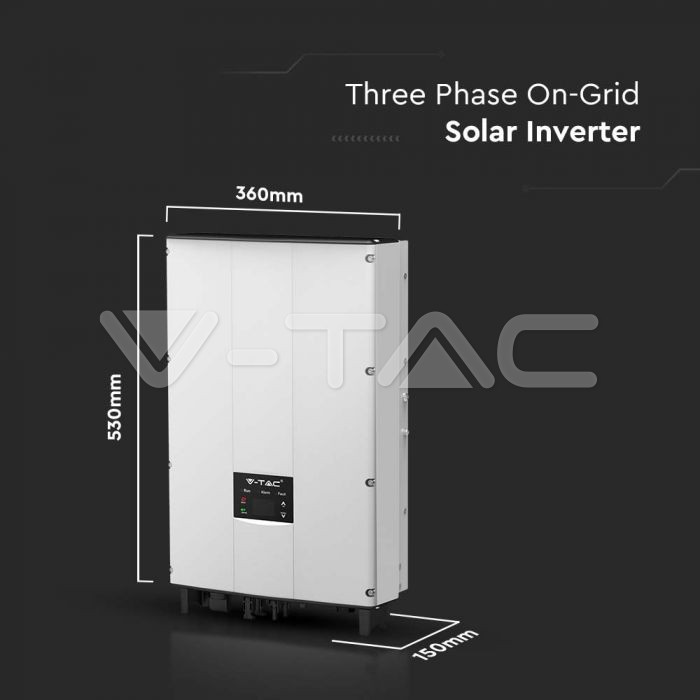

Size

530x360x150
Product Data
Order code

11371
Product code

VT-6605305
Item Weight

20kg
Additional
Release Date

15.09.2022
Brand

V-TAC

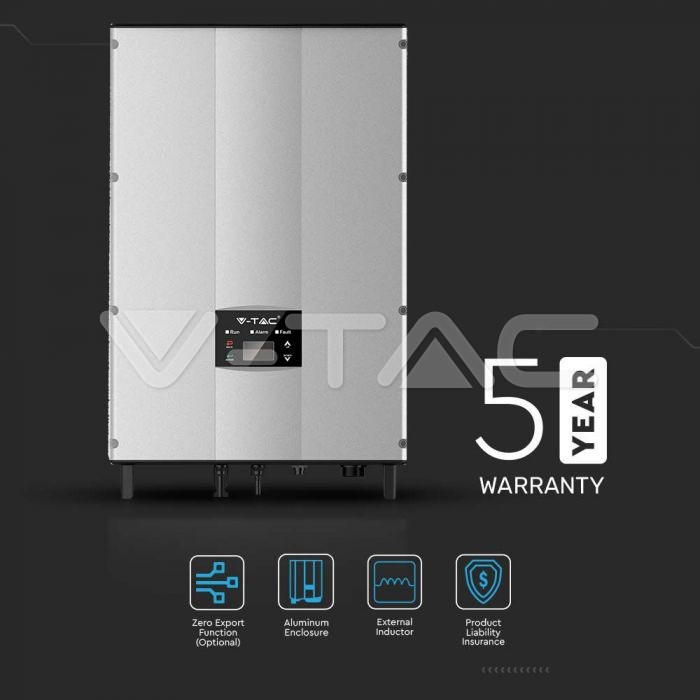

Warranty

5 years | Option for extended warranty + 5 years
